Cable entries

Standard press seal

with segmented ring technology

HRD SG b40 A2/EPDM50

Add to wish listAdd to wish list
This product has been marked in accordance with the FHRK test specification.

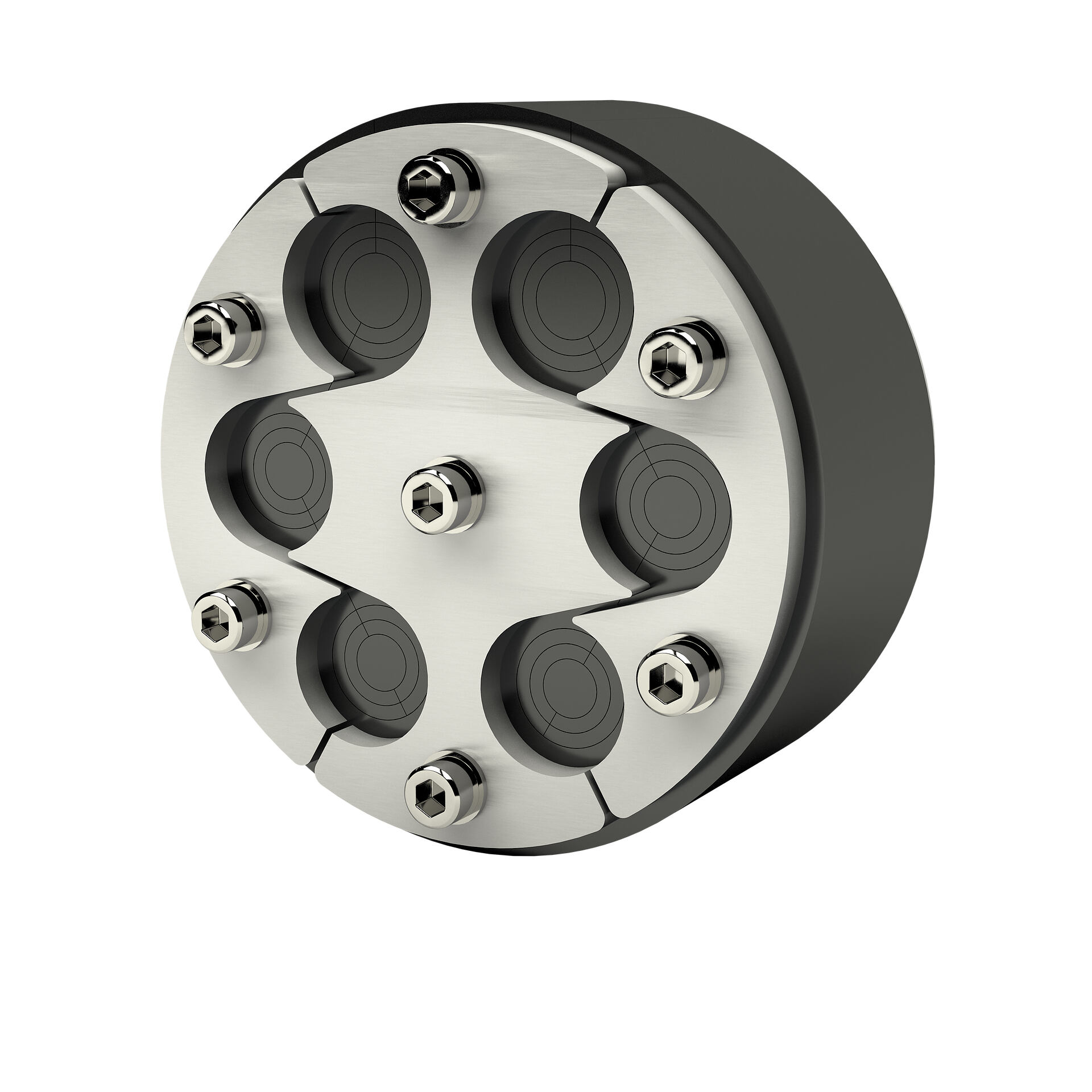

Standard press seal - with segmented ring technology
USP
  • Segmented ring technology for adjustment to three or five different pipe diameters on site
For sealing a water line or a power cable and communications lines in core drills or wall sleeves. Split design for sealing new cables to be installed or cables that have already been laid.
Standard press seal - with segmented ring technology

Facts

Advantages:

  • Empty openings are blind sealed ex works
  • Split seal for retrofit installation
  • Available from stock

Scope of delivery:

  • Blind plugs
  • 1 piece Lubricating stick

Dimensions:

  • Sealing width: 40 mm
  • Press plates: 5 mm

Application range:

  • DIN 18533 W1-E, DIN 18533 W2.1-E, DIN 18533 W2.2-E
  • Waterproof concrete stress class 1, waterproof concrete stress class 2

Material:

  • Press plates, screws, nuts and washers: rust-free stainless steel V2A (AISI 304L), (V4A (AISI 316L) on request)
  • Rubber: EPDM

Tightness:

  • gastight and watertight
Downloads

Installation instructions

Test reports

Data sheet & tender specification

For download of data sheet and tender specification please configurate the product in the section below and download via the symbol Download symbol

Variants

Wall sleeve/core drilled hole ID (mm) Number of cables/medium overall Carrier pipe Øa (mm) Article code Article number GTIN
80 1 1 6-41 HRD80 SG 1x6-41 b40 A2/EPDM50 2700100108 4052487000109
Download of data sheet and tender specification
title=
100 1 1 24-52 HRD100 SG 1x24-52 b40 A2/EPDM50 * 2700101000 4052487168038
Download of data sheet and tender specification
title=
100 4 4 8-30 HRD100 SG 4x8-30 b40 A2/EPDM50 * 2700102000 4052487000130
Download of data sheet and tender specification
title=
100 8 8 4-16,5 HRD100 SG 8x4-16,5 b40 A2/EPDM50 2700103000 4052487000147
Download of data sheet and tender specification
title=
100 5 2
3
8-30
4-16,5
HRD100 SG 2x8-30 3x4-16,5 b40 A2/EPDM50 2700103500 4052487000154
Download of data sheet and tender specification
title=
104 1 1 24-52 HRD104 SG 1x24-52 b40 A2/EPDM50 2700103615 4052487129695
Download of data sheet and tender specification
title=
104 4 4 8-30 HRD104 SG 4x8-30 b40 A2/EPDM50 2700103610 4052487127370
Download of data sheet and tender specification
title=
104 8 8 4-16,5 HRD104 SG 8x4-16,5 b40 A2/EPDM50 2700103620 4052487129213
Download of data sheet and tender specification
title=
125 3 3 10-40 HRD125 SG 3x10-40 b40 A2/EPDM50 2700103750 4052487063913
Download of data sheet and tender specification
title=
Expand
