Facts

Application range:

• DIN 18533 W1.1-E, DIN 18533 W1.2-E, DIN 18533 W2.1-E
• Waterproof concrete stress class 1, Waterproof concrete stress class 2

Advantages:

• Seals all supply lines through one entry
• Continuous duct connection up to the main supply lines at the edge of the property possible
• Modular system provides the appropriate external sealing depending on load class, construction type and wall structure

Scope of delivery:

• Front panel in internal sealing
• 4 x sleeve pipes
• Test valve (pre-assembled)
• Movable spirit level (pre-assembled)
• 8 x self-tapping screws M8x45 and washers for sealing services

Dimensions:

• Sealing width: 60 mm
• Compatible with core drill ID: 199 mm - 203 mm
• Maximum wall thickness: 500 mm (special lengths on request)

Properties:

• To be supplemented with section sealing elements and one or more external sealing elements (depending on wall type and structure)

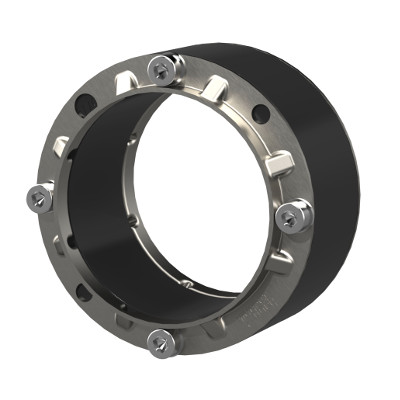

• In combination with Module 6 or Module 6.2 (external sealing element with 90 mm sealing surface with or without outer flange) creates a testable variant for use in double/element walls

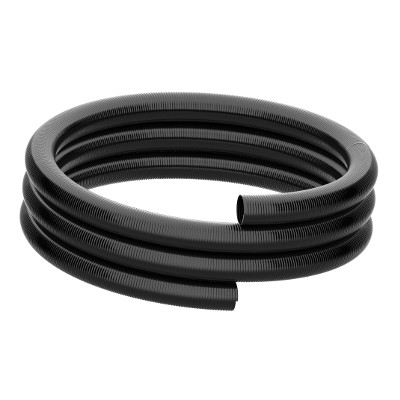

• Can be optionally combined with connection elements and empty pipe system

Material:

• Inner seal: Fibre-glass reinforced polyamide/EPDM
• Sleeve pipes: PVC
• Screws: stainless steel V2A (AISI 304L)

Tightness:

• Gastight and watertight to 1 bar

Tests/Standards:

• DVGW VP 601
