Sleeve cap and pipe connection set

for multi-line building entry systems (wall entries)

MSH ZBS2

Add to wish list

Sleeve cap and pipe connection set - for multi-line building entry systems (wall entries)

With segmented ring technology for maximum area of application

For connecting an empty conduit route DN 75 (corrugated) to the multi-line building entry system as well as for sealing media lines on the earth side.

Facts

Advantages:

Blind sealed on delivery
Retrofit configuration remains possible after the sleeve pipe of the building entry or duct route has been sealed

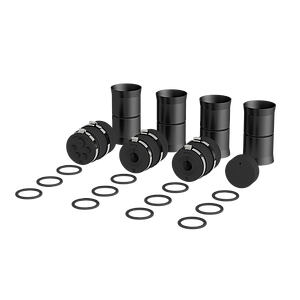

Scope of delivery:

2 pieces sleeve caps MS 78 - U 1/24-52
1 piece sleeve cap MS 78 - KD 1/13-21+3/7-13+1/5-13
6 pieces clamping straps
1 piece universal gas end cap GS 63-70-78/32-40-50
4 pieces double sleeves DN 75 for corrugated pipes (Kabuflex or Unicor Duolight)
12 pieces profile sealing rings DN 75

Dimensions:

Area of application MS 78 - U: 1 cable/pipe OD 24 - 52 mm
Area of application MS 78 - KD: 1 cable OD 13 - 21 mm, 3 cables OD 7 - 13 mm, 1 cable OD 5 - 13 mm
Area of application gas end cap: suitable for duct ID: 63 - 78 mm, media pipe OD: 32, 40 or 50 mm

Material:

Sleeves: EPDM
Clamping straps: stainless steel V2A (AISI 304L)
Gas end cap: NBR
Double sleeves: PE-HD
Profile seal: EPDM

Downloads

Installation instructions

Data sheet & tender specification

For download of data sheet and tender specification please configurate the product in the section below and download via the symbol Download symbol

Variants

Article code	Article number	GTIN
MSH ZBS2	1552002110	4052487165853	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
